Product Details

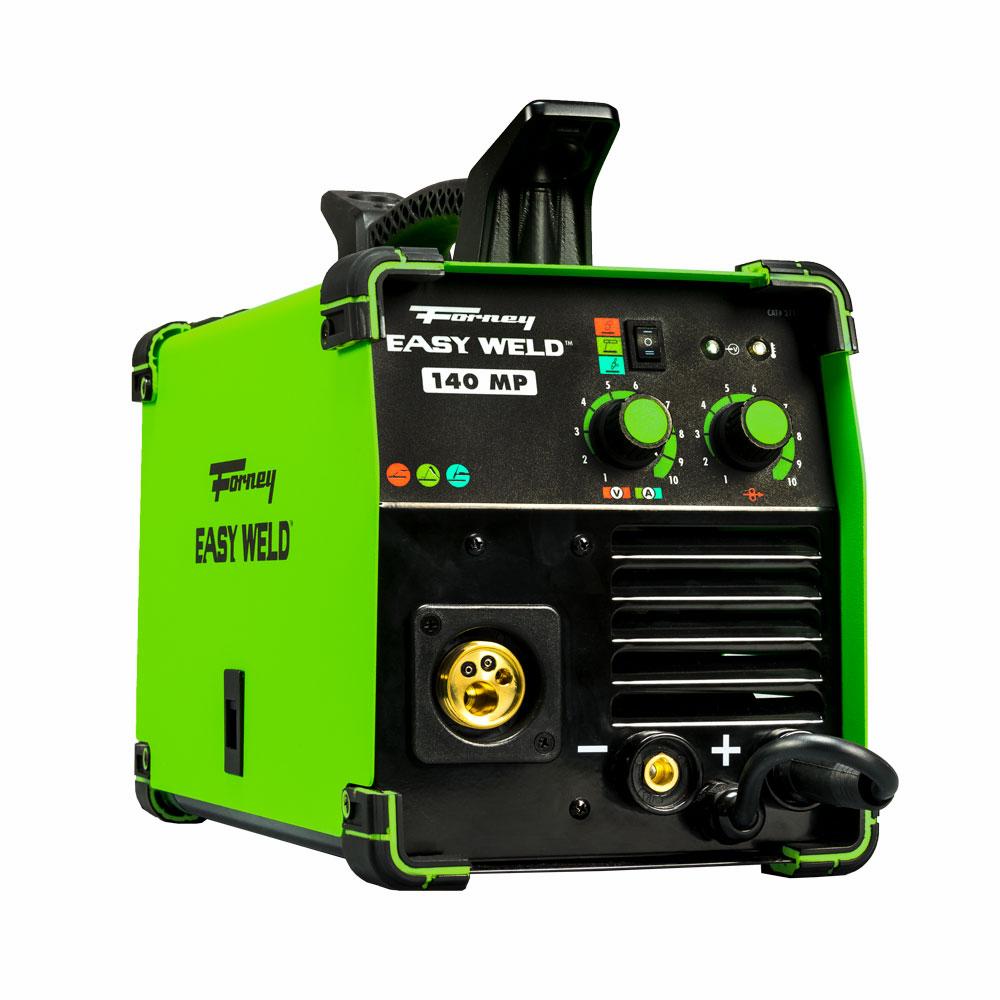

The Forney Easy Weld 140 Multi-Process is a 3-in-1 machine (Stick/MIG/TIG). Lightweight and extremely easy to use, it is a single-phase inverter machine. Applications include do-it-yourself, maintenance and repair, metal fabrication, hobbyist and metal artist. Product Specifications: Display Box Unit Dimensions: 14.19" x 19.31" x 11.61". Display Box Unit Weight: 24.81 lbs. Multi-Process Welder: MIG/DC TIG/Stick welder (TIG torch not included). Portable. Infinite voltage and wire feed speed control. Wire feed speed range: 79 - 197 inches per minute (IPM). Rated output voltage range 12-23V. Rated output current range 43-110A. Full output current range: 10-140A. Plate thickness range: Up to 1/4". No gas required. No foot pedal operation on this machine. Uses gasless wire .030”/.035”. Up to 1/8” stick electrode. 120-volt input power. Includes: 10' MIG gun, 8' electrode holder, 8' ground clamp, 20A - 15A adapter and one additional .030" contact tip. Duty cycle: Stick 30% @ 80A, MIG 30% @ 90A and TIG 30% @ 110A. Recommended Accessories and Consumables: Contact Tips: 60170, 60171 and 60172. Welding Nozzles: 85336 and 85337. Diffuser: 85339. Mild Steel MIG Wire: 42285, 42286, 42290 and 42291. Flux Core MIG Wire: 42300 and 42301. Gun/Torch: 85500. 9V TIG Torch (Size 25 Dinse): 85657. TIG Welding Ceramic Cup: 85454. TIG Welding Torch Collet, 1/16”: 85455. TIG Welding Torch Collet Body, 1/16”: 85459. 2% Thoriated Tungsten Electrode: 85450.
